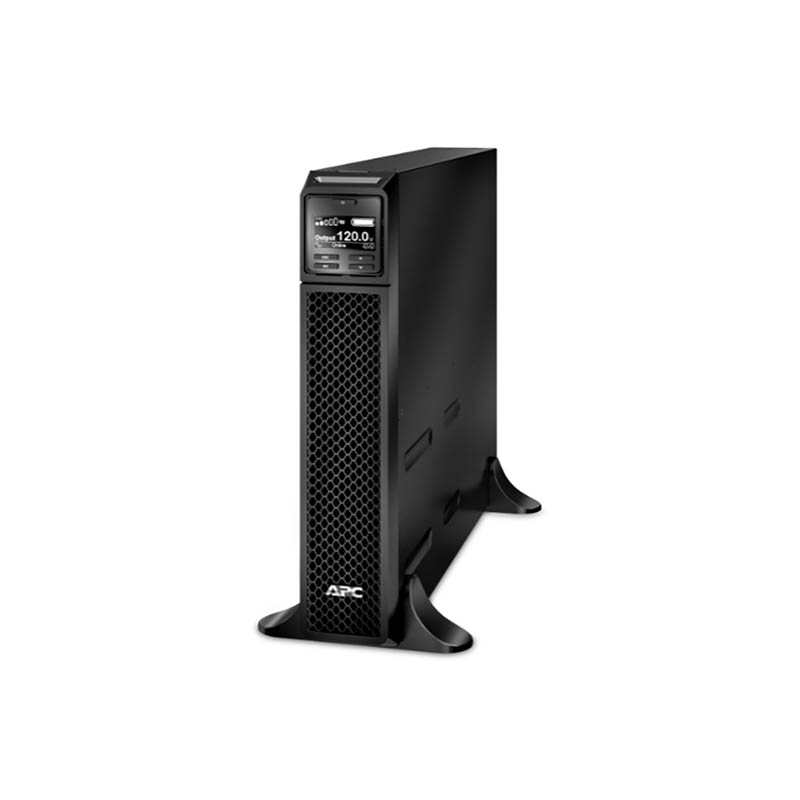

APC Smart-UPS SRT 2200VA, 120V, LCD, 6x NEMA 5-20R & 1x NEMA L5-20R outlets

APC Smart-UPS SRT 2200VA, 120V, LCD, 6x NEMA 5-20R & 1x NEMA L5-20R outlets

$272,950

APC Smart-UPS SRT 2200VA, 120V, LCD, 6x NEMA 5-20R & 1x NEMA L5-20R outlets
High density, double-conversion on-line power protection with scalable runtime.
  • Battery failure notification
    Provides early-warning fault analysis on batteries enabling timely preventive maintenance
  • ECO Mode
    Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
  • LCD graphics display
    Text and mimic diagrams that display modes of operation, system parameters and alarms
  • Rack/Tower convertible:Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
  • Rack/Tower convertible
  • Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
  • Plug-and-Play external batteries
  • Ensures clean, uninterrupted power to the loads when adding extra runtime to the UPS.
  • Flash upgradeable firmware
  • Install maintenance releases of firmware remotely using FTP.
  • Automatic internal bypass: Supplies utility power to the connected loads in the event of a UPS power overload or fault.
  • Temperature-sensitive battery charging: Prolongs battery life by regulating the charge voltage according to battery temperature.
  • Scalable runtime: Allows additional run time to be quickly added as needed.
  • Intelligent battery management: Maximizes battery performance, life, and reliability through intelligent, precision charging.
  • Hot-swappable batteries: Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
  • Automatic restart of loads after UPS shutdown: Automatically starts up the connected equipment upon the return of utility power.
Add to quote
SKU: NXTSRT2200XLA Categories: ,

Output

  • Max Configurable Power (Watts): 1.8kWatts /2.2kVA
  • Output Voltage Distortion: Less than 2 %
  • Output Frequency (sync to mains) : 50/60 Hz +/- 3 Hz Sync to mains
  • Load Crest Factor: 3 : 1
  • Topology: Double conversion online
  • Waveform type: Sine wave
  • Bypass: Internal bypass (automatic and manual)

Input

  • Input frequency: 40 – 70 Hz Auto-sensing
  • Number of Power Cords: 1

Batteries & Runtime:

Battery type: Lead-acid battery:

  • Included Battery Modules1
  • Typical recharge time: 3hour(s)
  • Nominal Battery Voltage: 72 V
  • Expected Battery Life (years): 3 – 5
  • RBC Quantity: 1
  • Battery Charge Power (Watts): 102 Watts
  • Extendable Run Time: 1

Communications & Management

  • Interface Port(s): RJ-45 Serial, Smart-Slot, USB
  • Control panel: Multifunction LCD status and control console
  • Audible Alarm: Audible and visible alarms prioritized by severity
  • Emergency Power Off (EPO): Yes
  • Available SmartSlot Interface Quantity: 1



Surge Protection and Filtering

  • Surge energy rating: 340Joules

Physical

  • Maximum Height: 17.01inches (432MM, 43.2CM)
  • Maximum Width: 3.35inches (85MM, 8.5CM)
  • Maximum Depth: 22.99inches (584MM, 58.4CM)
  • Net Weight: 55.12lbs. (25.0KG)
